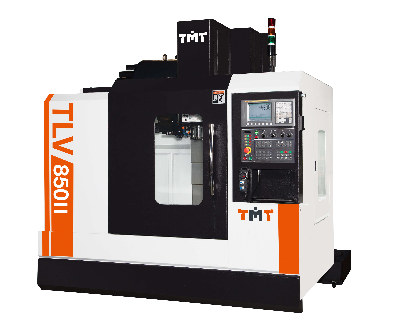

TLV Series (Linear) TLV-850II

Model Number: TLV-850II

X Axis Travel:850 mm
Y Axis Travel:530 mm
Z Axis Travel:580 mm
Spindle Taper:BT-40

  • Description
  • Specifications
  • Accessories

The Optimal in Vertical Machining Center

New Generation from TMT!


High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.

To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.


Column

Extra heavy duty column construction dramatically increases rigidity and stability.


High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.

To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.


Column

Extra heavy duty column construction dramatically increases rigidity and stability.


Magazine

The tool magazine is secured and supported to the base instead of the column to minimize column tilting and vibration caused magazine movements.


Table

Centralized auto lube system provides necessary lubrication to required areas to prolong machine life.


Basement

New design of wide basement, oversized span. The triangle shape construction increases machine rigidity and stability.
The sturdy column is reinforced with additional ribbing to evenly disperse and absorb resistance during machining without distortion.


Saddle

U-shaped ribbing drastically improve structural rigidity.
Wider and longer saddle structure compliments the heavy duty linear guide to enhance dynamics of the machine.


Spindle

10000 rpm Best cartridge type spindles with high speed bearings for extra rigidity and incredible surface finish & accuracy.


Oil Chiller

The spindle oil chiller provides consistent temperature control in order to maintain ultimate machine stability.


Linear Guide Way

*The linear guides on three axes are P4 grade, providing stability and heavy cutting.
*High efficiency machining center. Rapid traverse 36M/min (STD). 48M/min (TLV-850IIs)


Proven Quality and High Efficiency!

  • Content type lubricator provides sufficient lubrication oil while extending life of the wear-resistant media and the machine.
  • All linear ball screws on 3 axes (TLV Series) or box ways on Z axis (TCV Series)
  • Class C3 ball screws on 3 axes are pretension and laser compensated.
  • High speed & high precision spindle features outstanding dynamic cutting accuracy.

Column

Extra heavy duty column construction dramatically increases rigidity and stability.


Saddle

The saddle and base are Box in Box type construction to minimize machining vibration.


Basement

Rugged basement rib with large bottom span of 1220mm on the basement fully supports the center gravity within machine stroke.


Floating tool unclamping system

The circulated cooling design for the motor base avoids thermal deformation on the spindle head.
Floating tool unclamping system extends the spindle life.


Oil Chiller

The spindle oil chiller provides consistent temperature control in order to maintain ultimate machine stability.


Spindle

The coolant circulation grooves on the outside of the spindle, combined with a high efficiency oil chiller effectively reduces heat growth. Pressure difference in the spindle avoids dust entering.


Magazine

Increased magazine loading capacity of 30 tools is available.


Direct Drive Spindle

Direct coupled spindle offers less vibration than belt driven spindle, which drastically improves surface finish and machining accuracy.


Roller Type Guideway

High performance roller type guideway is more rigid and has higher load capacity than ball type guideway to satisfy heavy chip removal requirement.


Coolant through Ballscrew(TLV-850lls/1000s/llsAPC)

Ballscrews are chilled with cooled oil, dramatically thermo expansion and then obtaining stable accuracies.


Chain Type Chip Conveyor


4th Axis Rotary Table


Cooler

Description   Unit TLV-850II
  Controller   0i-M
TABLE Table size mm 1000x530
(39.37x20.86)
T-slot (size × number × pitch) mm 18x5Tx100
(0.70x0.19x3.93)
Max. load capacity kgf 500
STROKE X-axis stroke mm 850
Y-axis stroke mm 530
Z-axis stroke mm 580
SPINDLE Distance from table surface to spindle nose mm 100-680
Distance from column cover to spindle center line mm 586
Spindle motor (cont/ 30min) KW (HP) 7.5/11 (10/14.7)
Spindle speed rpm 10000
Spindle taper - BT-40
MOTOR Servo motor of X,Y,Z axis KW (HP) 1.8/1.8/2.5
(2.4/2.4/3.3)
Lub. Motor W 24 (0.03)
Coolant motor W 750 (1)
Flash coolant motor W 1270
FEEDRATE Rapid feedrate (X/Y/Z) m/min 36/36/30
(1417/1417/1181)
Cutting feedrate mm/min 10000 (393)
A.T.C Tool storage capacity pcs Arm type 24T
Max. tool dia. (with adjacent tool) mm Ø76 (2.99)
Max. tool dia. (without adjacent tool) mm Ø150 (5.90)
Max. tool weight kg 7 (15.4)
Tool change time (Tool to tool) sec 2.0

■ All specifications, dimensions and design characteristics are subject to change without prior notice.

TLV-850II/1000 Series
Standard Option
FANUC 0i-M Control Spindle Speed 12,000 rpm, Belt Drive
Spindle Speed 10,000 rpm, Belt Drive Spindle Speed 10,000/12,000 rpm, Direct Drive
Arm Type Magazine 24T Servo Drive and Spindle Motor
Adopts FANUC Alpha Type Series
Fully Enclosed Splash Guard Coolant through Spindle(CTS)
Spindle Chiller Coolant through Tool
Spindle Air Purge Curtain Coolant through ballscrew
Programmable Cutting Air Blast Spindle Coolant Ring
Chip Flushing Device 3-axis Optical Linear Scale
Coolant System 4th-axis Interface/4.5-axis Interface
(Tilting Rotary Table)
Automatic Lubrication System 4th-axis Rotary Table
Electrical Cabinet Heat Exchanger Chain Type Chip Conveyor & Chip Cart
3-color Warning Lamp Scraper Type Chip Conveyor & Chip Cart
Working Lamp High Pressure Coolant Pump
Tool Box with Tools High Precision Linear Roller Guides
Operation/Maintenance Manual Automatic Tool Length Measurement
and Breakage Detection(ATLM)
Manual Guide 0i Automatic Workpiece Measurement System
Auto Power OFF(M30) 200mm Raiser Block for Column
Rigid Tapping Oil Skimmer
Programs Memory 1280m Air Gun
RS-232 Interface Coolant Gun
Memory Card Interface(PCMCIA) Transformer/Stablizer
Ethernet

■ Standard and optional equipments listed as above are for reference only.
 The correct information is dependent on customer's order.
