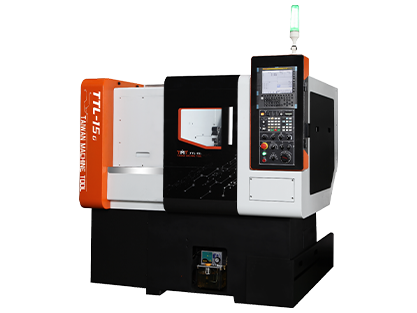

TTL-15G

TTL-15G
Diverse Optional Devices for Enhanced Performance!
The one piece cast base incorporates FEM analysis to achieve its optimal ribbing and structure to further enhance machine rigidity and stability.
The 45゚ slant bed design improve the ability for chip removal.
Servo motors are directly coupled to ballscrew with high pretension to minimize backlash and thermal distortion and improve machining accuracy.
The rapid federate of TTL-G Series is 18 m/min for X axis and 18 m/min for Z axis. And the servo motors adopt absolute encoders for faster and more reliable positioning.
Gang Type Tool Holder System
(TTL-10G/15G)
 ttl-g
The gang type tool holder can be arranged flexibly depend on cutting needs. The maximum capacity is 5 inner-diameter cutting tools at the same time.
X/Z Axis Linear Guideway  ttl-g
X/Z axis adopt with linear guideway to satisfy high accuracy and rapid moving requirement.
Servo Turret (TTL-10S/15S)  ttl-g
High speed servo driven turret changes tool position within 0.3 seconds with high precision and speed.



Parts Catcher (TTL-10G/15G)  ttl-g
The parts catcher is a synchronized design for quick collection of finished product.
Product Conveyor(TTL-10G/15G)  ttl-g
The product conveyor combined with the barfeeder allows the machine to perform fully automatic operations.
Separated Independent Coolant Tank  ttl-g
The independent coolant tank can be cleaned easily and improve the convenience for daily maintenance.
Chip Basket  ttl-g
Standard with the chip basket to easier the daily clearance. Also can reduce valuable shop floor space and increase the space utilization.



Multiple Tools Collocation (OPT)
Multiple tools collocation offers flexibility to meet customer’s requirement for various application.
 ttl-g  ttl-g  ttl-g  ttl-g
Load Monitor Function(OPT)  ttl-g
FANUC control system: Extra load monitor function to control tooling working to axial loading value, which can notice tool consumption in advance and reduce loss rate of production efficiently.
C-Axis Function(OPT)  ttl-g
Optional C-axis function allows the operation for milling, drilling and tapping.
Rear Type Chip Conveyor(OPT)  ttl-g
Besides chain type chip conveyor, we also offer optional screw type chip conveyor which ca satisfy different type chips for various material.



Barfeeder(OPT)  ttl-g
Automatic feeding system can replace traditional artificial operating, substantial saving labor requirement.
Oil Mist Collector(OPT)  ttl-g
Adopt 2-step filter, efficiency saving fuel consumption; avoid oil mist spread to working environment.
TTL-G Series
Standard Option
FANUC 0i-Mate TD controller Hollow Hydraulic 3-jaw Chuck 5"(TTL-10G)/6"(TTL-15G)
Collet Chuck 171E(TTL-10G)/173E(TTL-15G) Collet Chuck CL-36(TTL-10S)/CL-42(TTL-15S)
Hollow Hydraulic 3-jaw Chuck 5"(TTL-10S)/6"(TTL-15S) Foot Switch Control for Chuck (TTL-10G/15G)
Foot Switch Control for Chuck (TTL-10S/15S) Parts Catcher (TTL-10S/15S)
Parts Catcher (TTL-10G/15G) Product Conveyor (TTL-10S/15S)
Product Conveyor (TTL-10G/15G) Chain type Chip Conveyor & Chip Cart
Coolant System Screw type Chip Conveyor & Chip Cart
Automatic Lubrication System Auto Door
3-color Warning Lamp Oil Mist Collector
Working Lamp High Pressure Cutting Coolant Motor
Front Air Blast Bar Feeder
Tool Box with Tools Oil Skimmer
Chip Basket Manual/Auto Tool Presetter
Operation/Maintenance Manual Air Conditioner
Heat Exchanger Transformer/ Voltage Stabilizer
Manual Guide 0i
Auto Power Off (M30)
Barfeeder Interface
Dynamic Graph Simulation
RS-232 Interface
Memory Card Interface(PCMCIA)
Ethernet


■ Standard and optional equipments listed as above are for reference only.
 The correct information is dependent on customer's order.

Description UnitTTL-15G
  Controller - 0i-TF
CAPACITY Swing over bed mm φ475
Swing over saddle mm φ80
Max. turning diameter mm φ100
Max. working length mm 225
Bar capacity mm φ42
Chuck size inch -
Type of collet chuck - 173E
STROKE X-axis stroke mm 340
Z-axis stroke mm 265
FEEDRATE Axial rapid feedrate m/min X:18, Z:18 (opt. 24)
Cutting feedrate(X/Z) mm/min 10000
SPINDLE Spindle speed rpm 6000
Spindle nose - A2-5
Spindle bore diameter mm φ56
TURRET Turret type and storage capacity - -
Square tool dimension mm 20x20 (Gang type)
Boring tool dimension mm φ25 (Gang type)
MOTOR Spindle motor output (cont./30 min.) KW(HP) 5.5/7.5 (7.3/10)
Axial servo motor KW X:1.2, Z:1.2
(X:1.6, Z:1.6)
