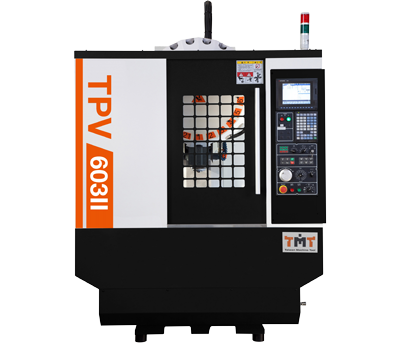

TPV-603II

TPV-603II
3 Optimal Structural Design!Maximum Stability!Maximum Rigidity!
The CNC tapping center, designed and manufactured by TMT, is your best choice in drilling and tapping work.
The machine series employs a high speed traverse on the three axes to significantly increase drilling and tapping efficiency.
The entire machine is ruggedly constructed to assure the highest machining accuracy.
The casting parts of the machine are manufactured from high quality MEEHANITE case iron, rib reinforced and stress released to assure it remains deformation-free year after year.
Three axes slideways are mounted with precision linear ways. Extra-large span between ways. High feed rate and superior stability.
Servo motor directly drives ballscrew, featuring high positioning accuracy without backlash problem.
BT-30 Direct Drive Type Spindle
10000, 12000, 15000, 20000, 24000rpm. Can work with NBT with two-faces-contact.
Column Base Increased
With bigger span offer higher rigidity and cutting stability.
X, Z Axis Cover Guard
One piece design, without broken case when z-axis fast moving.
Linear Ways On 3 Axes
The X, Y, Z-axis slideways are mounted with precision linear ways, fitted with great span between ways, showing maximumstability during thigh speed traverse. The abll type linear ways frature low friction coefficient and high positioning accuracy.
Large Capacity Coolant Tank with Casters
Sliding coolant tank can be pulled out easily. Fitting with mesh filter to make chips clean easily.
Motor of Y axis
Y axis motor is mounted in front of machine to reduce the length of Y axis, and heat difference.
Enclosed of Cable and Pipes
All cables are fitted under cover will not be affected in cutting area.
TPV-603II
Standard Option
Spindle air blow device Armless 14T magazine
Work light (PL Light) Armless 21T magazine (servo ATC) T-T 1.6 sec.
Coolant system and coolant tank Magaine with servo
Leveling bolts and pads SK-30, CAT-30 Magazine & Spindle
Chip auger Hight Speed Spindle Upgrade To 12K/15K/20K/24K
Automatic lubrication system Spindle Power Upgrade to 5.5/3.7 kw
Tool kit and tools Extra Low Lnertia Spindle Motor (Rigid Tapping 6000rpm)
Dual-color LED alarm light Coolant through Spindle
Double-cabinet-type electrical cabinet ATLM with Breakage Detection
TFT LCD monitor Automatic Door
Spindle oil chiller (Spindle speed over 12,000 rpm) Transformer/Voltage Stabilizer
  Workpiece Air Blow System
  Oil Mist System
  Oil mist coolant system
  4th or 5th Axis
  Coolant Gun
  Thermal compensation system
  Enclosure Chip Flushing System
  Scraper or Chain type Chip Conveyor
  Mist Collector/Top Full Cover
  Air conditioner for Electrical Cabinet

■ Standard and optional equipments listed as above are for reference only.
 The correct information is dependent on customer's order.

MODEL

Unit
TPV-603II
TRAVEL
X-Travel
mm
600
Y-Travel
mm
400
Z-Travel
mm
350
Table to Spindle Nose
mm
180~530
TABLE
Table Size
mm
700×420
Max. Load
kgs
200
T Slot
mm
14x100x4
SPINDLE
Spindle Speed
rpm
10000
Max. Tapping Speed
rpm
4000
Spindle Taper
-
7/24 NO:30
Transmission
-
Direct Type
FEEDRATE
Rapid Traverse(G00)
m/min
54/54/60
Cutting Feedrate(G01)
mm/min
10000
MAGAZINE
Tool Shank
-
BT-30
Magazine Type
-
MAS -P30T-1
Pull Studs

Armless
Tool Capacity
-
12
Max. Tool Length
mm
200
Max. Tool Diameter
mm
100
Tool Weight
kgs
3
Tool Change Time
Tool to tool
sec
1.4
Chip to chip
sec
2.1
MOTOR
X-Axis Servo Motor(Mitsubishi/FANUC)
KW
1.0/1.2
Y-Axis Servo Motor(Mitsubishi/FANUC)
KW
1.5/1.2
Z-Axis Servo Motor(Mitsubishi/FANUC)
KW
2.2/3.0
Spindle Motor
KW
3.7/2.2

■ All specifications, dimensions and design characteristics are subject to change without prior notice.
