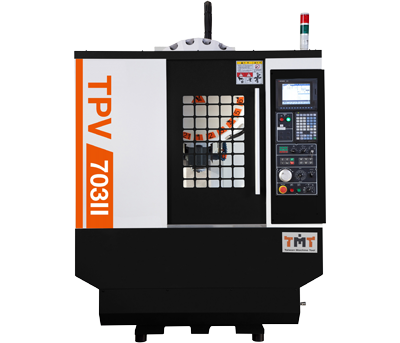

TPV-703II

PREV NEXT

TPV-703II
Standard	Option
Spindle air blow device	Armless 14T magazine
Work light (PL Light)	Armless 21T magazine (servo ATC) T-T 1.6 sec.
Coolant system and coolant tank	Magaine with servo
Leveling bolts and pads	SK-30, CAT-40 Magazine & Spindle
Chip auger	Hight Speed Spindle Upgrade To 12K/15K/20K/24K
Automatic lubrication system	Spindle Power Upgrade to 5.5/3.7 kw
Tool kit and tools	Extra Low Lnertia Spindle Motor (Rigid Tapping 6000rpm)
Dual-color LED alarm light	Coolant through Spindle
Double-cabinet-type electrical cabinet	ATLM with Breakage Detection
TFT LCD monitor	Automatic Door
Spindle oil chiller (Spindle speed over 12,000 rpm)	Transformer/Voltage Stabilizer
	Workpiece Air Blow System
	Oil Mist System
	Oil mist coolant system
	4th or 5th Axis
	Coolant Gun
	Thermal compensation system
	Enclosure Chip Flushing System
	Scraper or Chain type Chip Conveyor
	Mist Collector/Top Full Cover
	Air conditioner for Electrical Cabinet

■ Standard and optional equipments listed as above are for reference only.
　The correct information is dependent on customer's order.

MODEL			Unit	TPV-703II
TRAVEL	X-Travel		mm	700
	Y-Travel		mm	400
	Z-Travel		mm	350
	Table to Spindle Nose		mm	180~530
TABLE	Table Size		mm	850×420
	Max. Load		kgs	200
	T Slot		mm	14x100x4
SPINDLE	Spindle Speed		rpm	10000
	Max. Tapping Speed		rpm	4000
	Spindle Taper		-	7/24 NO:30
	Transmission		-	Direct Type
FEEDRATE	Rapid Traverse(G00)		m/min	54/54/60
FEEDRATE	Cutting Feedrate(G01)		mm/min	10000
MAGAZINE	Tool Shank		-	BT-30
	Magazine Type		-	MAS -P30T-1
	Pull Studs			Armless
	Tool Capacity		-	12
	Max. Tool Length		mm	200
	Max. Tool Diameter		mm	100
	Tool Weight		kgs	3
	Tool Change Time	Tool to tool	sec	1.4
	Tool Change Time	Chip to chip	sec	2.1
MOTOR	X-Axis Servo Motor(Mitsubishi/FANUC)		KW	1.0/1.2
	Y-Axis Servo Motor(Mitsubishi/FANUC)		KW	1.5/1.2
	Z-Axis Servo Motor(Mitsubishi/FANUC)		KW	2.2/3.0
	Spindle Motor		KW	3.7/2.2
OTHER	WxDxH		mm	1920x2260x2650
OTHER	Nwt Weight		kgs	2850

■ All specifications, dimensions and design characteristics are subject to change without prior notice.
