- TLV-1000

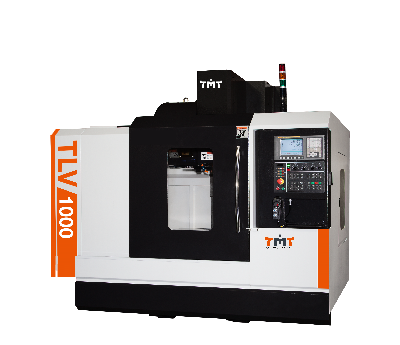

TLV Series (Linear) TLV-1000
Model Number: TLV-1000
X Axis Travel:1000 mm
Y Axis Travel:530 mm
Z Axis Travel:580 mm
Spindle Taper:BT-40
- Description
- Specifications
- Accessories
The Optimal in Vertical Machining Center
New Generation from TMT!
High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.
To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.
Column
Extra heavy duty column construction dramatically increases rigidity and stability.
High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.
To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.
Column
Extra heavy duty column construction dramatically increases rigidity and stability.
Magazine
The tool magazine is secured and supported to the base instead of the column to minimize column tilting and vibration caused magazine movements.
Table
Centralized auto lube system provides necessary lubrication to required areas to prolong machine life.
Basement
New design of wide basement, oversized span. The triangle shape construction increases machine rigidity and stability.
The sturdy column is reinforced with additional ribbing to evenly disperse and absorb resistance during machining without distortion.
Saddle
U-shaped ribbing drastically improve structural rigidity.
Wider and longer saddle structure compliments the heavy duty linear guide to enhance dynamics of the machine.
Spindle
10000 rpm Best cartridge type spindles with high speed bearings for extra rigidity and incredible surface finish & accuracy.
Oil Chiller
The spindle oil chiller provides consistent temperature control in order to maintain ultimate machine stability.
Linear Guide Way
*The linear guides on three axes are P4 grade, providing stability and heavy cutting.
*High efficiency machining center. Rapid traverse 36M/min
Description | Unit | TLV-1000 | |
---|---|---|---|
Controller | - | 0i-M | |
TABLE | Table size | mm | 1150x530 |
T-slots | mm | 18x5Tx100 | |
Max. load capacity | kgf | 500 | |
STROKE | X-axis stroke | mm | 1000 |
Y-axis stroke | mm | 530 | |
Z-axis stroke | mm | 580 | |
SPINDLE | Distance from table surface to spindle nose | mm | 100-680 |
Distance from column cover to spindle center line | mm | 586 | |
Spindle motor (cont./30 min.) | KW (HP) | 11/15 (14.7/20) | |
Spindle speed | rpm | 10000 | |
Spindle taper | - | BT-40 | |
MOTOR | Servo motor of X, Y, Z axis | KW (HP) |
1.8/1.8/3.0 (2.4/2.4/4.0) |
Lubrication motor | W | 24 | |
Coolant motor | W | 750 | |
FEEDRATE | Rapid feedrate of X, Y, Z axis | m/min | 36/36/30 |
Cutting feedrate | mm/min | 10000 | |
A.T.C | Tool sotrage capacity | pcs | Arm Type 24T |
Max. tool diameter (with adjacent tool) | mm | Ø76 | |
Max. tool diameter (without adjacent tool) | mm | Ø150 | |
Max. tool weight | kg | 7 | |
Tool change time (T to T) | sec | 2.0 |
■ All specifications, dimensions and design characteristics are subject to change without prior notice.
TLV-850II/1000 Series | |
---|---|
Standard | Option |
FANUC 0i-M Control | Spindle Speed 12,000 rpm, Belt Drive |
Spindle Speed 10,000 rpm, Belt Drive | Spindle Speed 10,000/12,000 rpm, Direct Drive |
Arm Type Magazine 24T | Servo Drive and Spindle Motor Adopts FANUC Alpha Type Series |
Fully Enclosed Splash Guard | Coolant through Spindle(CTS) |
Spindle Chiller | Coolant through Tool |
Spindle Air Purge Curtain | Coolant through ballscrew |
Programmable Cutting Air Blast | Spindle Coolant Ring |
Chip Flushing Device | 3-axis Optical Linear Scale |
Coolant System | 4th-axis Interface/4.5-axis Interface (Tilting Rotary Table) |
Automatic Lubrication System | 4th-axis Rotary Table |
Electrical Cabinet Heat Exchanger | Chain Type Chip Conveyor & Chip Cart |
3-color Warning Lamp | Scraper Type Chip Conveyor & Chip Cart |
Working Lamp | High Pressure Coolant Pump |
Tool Box with Tools | High Precision Linear Roller Guides |
Operation/Maintenance Manual | Automatic Tool Length Measurement and Breakage Detection(ATLM) |
Manual Guide 0i | Automatic Workpiece Measurement System |
Auto Power OFF(M30) | 200mm Raiser Block for Column |
Rigid Tapping | Oil Skimmer |
Programs Memory 1280m | Air Gun |
RS-232 Interface | Coolant Gun |
Memory Card Interface(PCMCIA) | Transformer/Stablizer |
Ethernet |
■ Standard and optional equipments listed as above are for reference only.
The correct information is dependent on customer's order.
