Automatic Tool Changer Types Introduction: Carousel, Swing Arm & Chain ATC

The Automatic Tool Changer (ATC) is a critical component of a machining center, ensuring efficient and precise machining operations. Different ATC designs are developed to meet various machining requirements, each offering unique advantages and suitable applications.

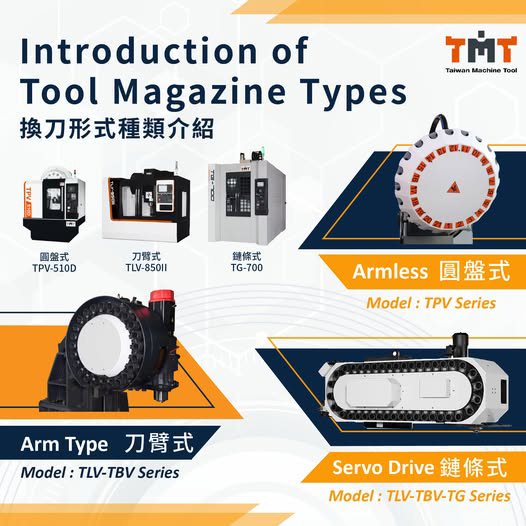

The three most common ATC types are #Carousel Type, #Swing Arm Type, and #Chain Type. Let's take a closer look at their features, advantages, and ideal applications.

---

1. Carousel Type ATC

Tools are stored in a circular magazine. During a tool change, the carousel rotates to the designated position, allowing the required tool to be automatically loaded into or unloaded from the spindle.

Advantages

• Simple structure and easy maintenance
• Stable and fast tool changing
• Cost-effective for general machining applications

Limitations

• Limited tool capacity
• Lower load capacity
• Not suitable for applications requiring numerous tools or heavy-duty machining

Recommended Applications

Ideal for compact machining centers and applications requiring fewer cutting tools.

Recommended Models: TPV Series

---

2. Swing Arm Type ATC

A mechanical swing arm automatically transfers tools between the tool magazine and the spindle, enabling rapid and efficient tool changes.

Advantages

• High-speed tool changing
• Excellent flexibility
• Significantly improves machining productivity

Limitations

• More complex mechanism
• Higher maintenance requirements
• Requires additional installation space

Recommended Applications

Ideal for high-volume production environments requiring frequent tool changes and multiple cutting tools.

Recommended Models: TLV / TBV Series

---

3. Chain Type ATC

Tools are stored on a chain-type magazine and automatically transferred through the movement of the chain system.

Advantages

• Large tool storage capacity
• Smooth and reliable automatic tool changing
• Lower maintenance costs
• Easy operation

Limitations

• Larger machine footprint
• Higher space requirements due to the chain magazine design

Recommended Applications

Ideal for complex machining requiring a large number of tools, high productivity, and heavy-duty cutting.

Recommended Models: TLV / TBV / TG Series
