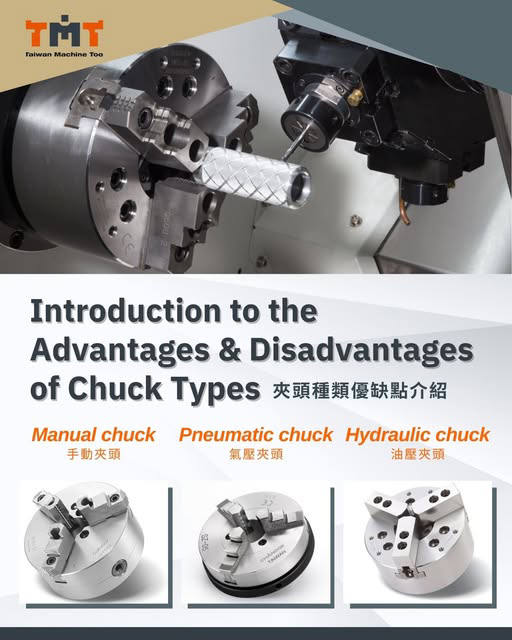

Understanding 3 Chuck Types: Advantages, Limitations & Applications

A chuck is an essential workholding device in machine tool operations. Choosing the right chuck directly affects workpiece stability, machining accuracy, and overall productivity. Selecting the most suitable chuck for your machining requirements can significantly improve efficiency and precision.

TMT Machinery has compiled the advantages, limitations, and ideal applications of the three most common chuck types to help you find the best solution for your machining needs.

---

1. Manual Chuck

Advantages

• Lower initial cost
• Ideal for small-batch or one-off machining
• Simple construction for easy maintenance and servicing

Limitations

• Limited clamping force
• Not suitable for high-precision or high-volume production
• Manual operation results in lower productivity

Recommended Applications

Light-duty machining, laboratories, prototype work, and small workshops.

---

2. Hydraulic Chuck

Advantages

• High clamping force
• Excellent stability for precision machining
• Supports automated operation for higher productivity

Limitations

• Higher initial investment
• Requires an additional hydraulic system
• Higher maintenance and servicing costs

Recommended Applications

Heavy-duty machining, mass production, and applications requiring high workpiece stability and machining accuracy.

---

3. Pneumatic Chuck

Advantages

• Quick and easy clamping operation
• Ideal for light-duty machining
• Moderate clamping force suitable for medium-precision applications

Limitations

• Not suitable for large or high-rigidity workpieces
• Requires a compressed air supply, which may increase operating costs

Recommended Applications

Machining small to medium-sized workpieces and production environments requiring frequent workpiece changeovers.
