TTL-G Series TTL-10S

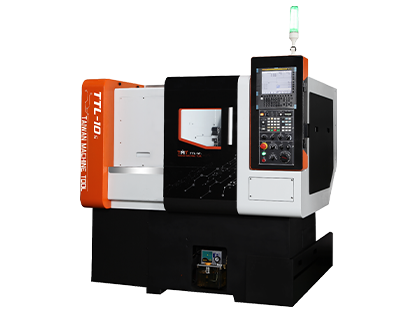

Model Number: TTL-10S

Chuck size:5"
Bar capacity:Ø 33 mm
Max. working length:275mm
Max. turning diameter:Ø360 mm
Spindle Nose:A2-4

  • Description
  • Specifications
  • Accessories

Diverse Optional Devices for Enhanced Performance!

  • The one piece cast base incorporates FEM analysis to achieve its optimal ribbing and structure to further enhance machine rigidity and stability.
  • The 45゚ slant bed design improve the ability for chip removal.
  • Servo motors are directly coupled to ballscrew with high pretension to minimize backlash and thermal distortion and improve machining accuracy.
  • The rapid federate of TTL-G Series is 18 m/min for X axis and 18 m/min for Z axis. And the servo motors adopt absolute encoders for faster and more reliable positioning.

Gang Type Tool Holder System

The gang type tool holder can be arranged flexibly depend on cutting needs.
The maximum capacity is 5 inner-diameter cutting tools at the same time.


X/Z Axis Linear Guideway

X/Z axis adopt with linear guideway to satisfy high accuracy and rapid moving requirement.


Servo Turret (TTL-10S/15S)

High speed servo driven turret changes tool position within 0.3 seconds with high precision and speed.


Parts Catcher (TTL-10G/15G)

The parts catcher is a synchronized design for quick collection of finished product.


Product Conveyor(TTL-10G/15G)

The product conveyor combined with the barfeeder allows the machine to perform fully automatic operations.


Separated Independent Coolant Tank

The independent coolant tank can be cleaned easily and improve the convenience for daily maintenance.


Chip Basket

Standard with the chip basket to easier the daily clearance. Also can reduce valuable shop floor space and increase the space utilization.


Load Monitor Function(OPT)

FANUC control system: Extra load monitor function to control tooling working to axial loading value, which can notice tool consumption in advance and reduce loss rate of production efficiently.


C-Axis Function(OPT)

Optional C-axis function allows the operation for milling, drilling and tapping.


Rear Type Chip Conveyor(OPT)

Besides chain type chip conveyor, we also offer optional screw type chip conveyor which ca satisfy different type chips for various material.



Automatic feeding system can replace traditional artificial operating, substantial saving labor requirement.


Oil Mist Collector(OPT)

Adopt 2-step filter, efficiency saving fuel consumption; avoid oil mist spread to working environment.

Multiple Tools Collocation (OPT)

Multiple tools collocation offers flexibility to meet customer's requirement for various application.

Description   Unit TTL-10S
  Controller - 0i-T
CAPACITY Swing over bed mm φ475
Swing over saddle mm φ255
Max. turning diameter mm φ360
Max. working length mm 220 (opt. 275)
Bar capacity mm φ33
Chuck size inch 5"
Type of collet chuck - -
STROKE X-axis stroke mm 180+20
Z-axis stroke mm 260 (opt. 330)
FEEDRATE Axial rapid feedrate m/min X:18, Z:18 (opt. 24)
Cutting feedrate(X/Z) mm/min 10000
SPINDLE Spindle speed rpm 6000
Spindle nose - A2-4
Spindle bore diameter mm φ45
TURRET Turret type and storage capacity - Servo V8
Square tool dimension mm 20x20
Boring tool dimension mm φ25
MOTOR Spindle motor output (cont./30 min.) KW(HP) 5.5/7.5 (7.3/10)
Axial servo motor KW X:1.2, Z:1.2
(X:1.6, Z:1.6)
TTL-G Series
Standard Option
FANUC 0i-T controller Hollow Hydraulic 3-jaw Chuck 5"(TTL-10G)/6"(TTL-15G)
Collet Chuck 171E(TTL-10G)/173E(TTL-15G) Collet Chuck CL-36(TTL-10S)/CL-42(TTL-15S)
Hollow Hydraulic 3-jaw Chuck 5"(TTL-10S)/6"(TTL-15S) Foot Switch Control for Chuck (TTL-10G/15G)
Foot Switch Control for Chuck (TTL-10S/15S) Parts Catcher (TTL-10S/15S)
Parts Catcher (TTL-10G/15G) Product Conveyor (TTL-10S/15S)
Product Conveyor (TTL-10G/15G) Chain type Chip Conveyor & Chip Cart
Coolant System Screw type Chip Conveyor & Chip Cart
Automatic Lubrication System Auto Door
3-color Warning Lamp Oil Mist Collector
Working Lamp High Pressure Cutting Coolant Motor
Front Air Blast Bar Feeder
Tool Box with Tools Oil Skimmer
Chip Basket Manual/Auto Tool Presetter
Operation/Maintenance Manual Air Conditioner
Heat Exchanger Transformer/ Voltage Stabilizer
Manual Guide 0i
Auto Power Off (M30)
Barfeeder Interface
Dynamic Graph Simulation
RS-232 Interface
Memory Card Interface(PCMCIA)

■ Standard and optional equipments listed as above are for reference only.
 The correct information is dependent on customer's order.
