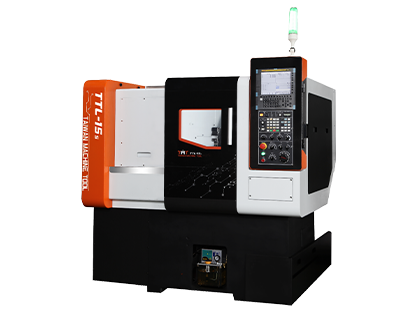

TTL-G Series TTL-15S
Model Number: TTL-15S
Chuck size：6"
Bar capacity：Ø 42 mm
Max. working length：250mm
Max. turning diameter：Ø360 mm
Spindle Nose：A2-5
- Description
- Specifications
- Accessories
Diverse Optional Devices for Enhanced Performance!
- The one piece cast base incorporates FEM analysis to achieve its optimal ribbing and structure to further enhance machine rigidity and stability.
- The 45ﾟ slant bed design improve the ability for chip removal.
- Servo motors are directly coupled to ballscrew with high pretension to minimize backlash and thermal distortion and improve machining accuracy.
- The rapid federate of TTL-G Series is 18 m/min for X axis and 18 m/min for Z axis. And the servo motors adopt absolute encoders for faster and more reliable positioning.
Gang Type Tool Holder System
(TTL-10G/15G)
The gang type tool holder can be arranged flexibly depend on cutting needs.
The maximum capacity is 5 inner-diameter cutting tools at the same time.
X/Z Axis Linear Guideway
X/Z axis adopt with linear guideway to satisfy high accuracy and rapid moving requirement.
Servo Turret (TTL-10S/15S)
High speed servo driven turret changes tool position within 0.3 seconds with high precision and speed.
Parts Catcher (TTL-10G/15G)
The parts catcher is a synchronized design for quick collection of finished product.
Product Conveyor(TTL-10G/15G)
The product conveyor combined with the barfeeder allows the machine to perform fully automatic operations.
Separated Independent Coolant Tank
The independent coolant tank can be cleaned easily and improve the convenience for daily maintenance.
Chip Basket
Standard with the chip basket to easier the daily clearance. Also can reduce valuable shop floor space and increase the space utilization.
Load Monitor Function(OPT)
FANUC control system: Extra load monitor function to control tooling working to axial loading value, which can notice tool consumption in advance and reduce loss rate of production efficiently.
C-Axis Function(OPT)
Optional C-axis function allows the operation for milling, drilling and tapping.
Rear Type Chip Conveyor(OPT)
Besides chain type chip conveyor, we also offer optional screw type chip conveyor which ca satisfy different type chips for various material.
Barfeeder(OPT)
Automatic feeding system can replace traditional artificial operating, substantial saving labor requirement.
Oil Mist Collector(OPT)
Adopt 2-step filter, efficiency saving fuel consumption; avoid oil mist spread to working environment.
Multiple Tools Collocation (OPT)
Multiple tools collocation offers flexibility to meet customer's requirement for various application.
| Description/Model | Unit | TTL-15S | |
|---|---|---|---|
| CAPACITY | Swing over bed | mm | φ475 |
| Swing over saddle | mm | φ80 | |
| Max. turning diameter | mm | φ360 | |
| Max. working length | mm | 250 | |
| Bar capacity | mm | φ42 | |
| Chuck size | inch | 6" | |
| SPINDLE | Spindle speed | rpm | 6000 |
| OTHER | Turret type and storage capacity | - | Servo V8 |
| TTL-G Series | |
|---|---|
| Standard | Option |
| FANUC 0i-T controller | Hollow Hydraulic 3-jaw Chuck 5"(TTL-10G)/6"(TTL-15G) |
| Collet Chuck 171E(TTL-10G)/173E(TTL-15G) | Collet Chuck CL-36(TTL-10S)/CL-42(TTL-15S) |
| Hollow Hydraulic 3-jaw Chuck 5"(TTL-10S)/6"(TTL-15S) | Foot Switch Control for Chuck (TTL-10G/15G) |
| Foot Switch Control for Chuck (TTL-10S/15S) | Parts Catcher (TTL-10S/15S) |
| Parts Catcher (TTL-10G/15G) | Product Conveyor (TTL-10S/15S) |
| Product Conveyor (TTL-10G/15G) | Chain type Chip Conveyor & Chip Cart |
| Coolant System | Screw type Chip Conveyor & Chip Cart |
| Automatic Lubrication System | Auto Door |
| 3-color Warning Lamp | Oil Mist Collector |
| Working Lamp | High Pressure Cutting Coolant Motor |
| Front Air Blast | Bar Feeder |
| Tool Box with Tools | Oil Skimmer |
| Chip Basket | Manual/Auto Tool Presetter |
| Operation/Maintenance Manual | Air Conditioner |
| Heat Exchanger | Transformer/ Voltage Stabilizer |
| Manual Guide 0i | |
| Auto Power Off (M30) | |
| Barfeeder Interface | |
| Dynamic Graph Simulation | |
| RS-232 Interface | |
| Memory Card Interface(PCMCIA) | |
| Ethernet | |
■ Standard and optional equipments listed as above are for reference only.
The correct information is dependent on customer's order.
